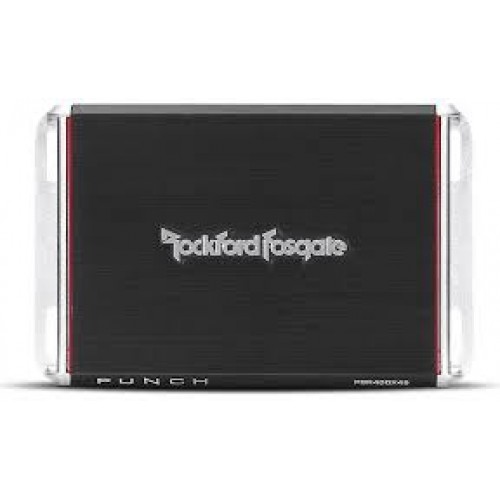

Rockford Fosgate Punch PBR400X4D 400 Watt Full-Range 4-Channel Amplifier
Advertised price subject to our fitment (fitment cost not included).
The Punch PBR400X4D is a 400 Watt full-range amp designed for compact systems. This efficient 4-channel amp packs a Punch in UTVs, motorcycles, and hybrid-electric vehicles without sucking a lot of juice from your electrical system. Rated Power (RMS Continuous Power) 50 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged
Product successfully added to the Quote List
| Information | |
| Specifications |
CEA-2006 Compliant
 CEA-2006 Power Rating50W x 4 @ 4Ω ≤1.0% THD+N Number of Channels
4
Total Power
(Sum of Rated Power) 400 Watts
Rated Power
(RMS Continuous Power) 50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged Dynamic Power
(PVC/Power Cube®) 75 Watts x 4 @ 4-Ohm
130 Watts x 4 @ 2-Ohm 270 Watts x 2 @ 4-Ohm Bridged Bridgeable
Yes
Frequency Response
20Hz - 20kHz +/- 1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class BR
Efficiency
(average) > 75%
Total Harmonic Distortion
THD+Noise 4-Ohm < 1.0
2-Ohm < 1.0 Signal Input
Input Switch: 2ch/4ch input switch
Hi-Level: Variable DC offset sensitivity High-Level: Harness Low-Level: 2 Pair RCA Signal Output
—
Tone Controls
—
Crossover Controls
High-Pass: 60Hz or 80Hz @ 12dB/Octave
Low-Pass: 80Hz @ 12dB/Octave Remote Controls
—
Visual Indicators
Power: Blue
Protect: Red Input Clip: Red Output Clip: Blue/Violet/Red LED Color Legend Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
16 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness Cooling
Convection
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
not included 60 A
Average Current Draw
13.8V Music 27 A
Max. Current Draw
13.8V Sinewave) 50 A
Suggested Alternator
75 A
Dimensional Diagram
Dimensions (H x W x D)
1.53 x 4.25 x 6.75 (in.)
3.9 x 10.79 x 17.16 (cm) Shipping Weight
3.1 Lbs. (1.4 Kg.)
|
