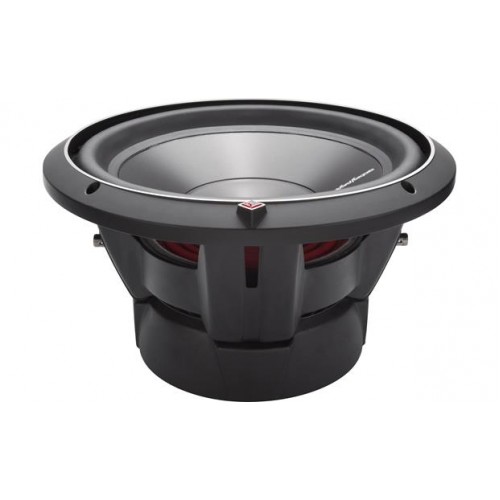

Rockford Fosgate Punch P3D2-15 15″ Subwoofer
Advertised price subject to our fitment (fitment cost not included).
The P3D2-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15” features Dual 2-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
Product successfully added to the Quote List
| Information | |
| Specifications |
Nominal Impedance
Dual 2-Ohm
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max Magnet Weight (oz)
96 oz. (2.73 kg.)
Voice Coil Diameter
2.5" (65.5 mm)
Mounting Depth
7.58 in. (192.5 mm)
Qts
0.54
Vas (Liters)
155.8
Cutout Diameter
13.94 in. (353 mm)
Woofer Displacement
0.148 cu. ft. (4.2 Liters)
Size
15"
Speaker Connector
Dual 10 AWG compression
Shipping Weight
23.3 Lbs. (10.56 kg)
Fs (Hz)
21.7
Qes
0.58
Qms
7.20
Le (mH)
4.06
SPL (dB @ 1w/1m)
86
CEA-2031 Compliant
 Xmax (mm)
15.2
Re (Ohms)
3.20
Sd (cm2)
894
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Vented Box Volume (Vb)
2.66 cu. ft. (75.3 Liters)
Sealed Box Volume (Vb)
1.58 cu. ft. (44.7 Liters)
|
