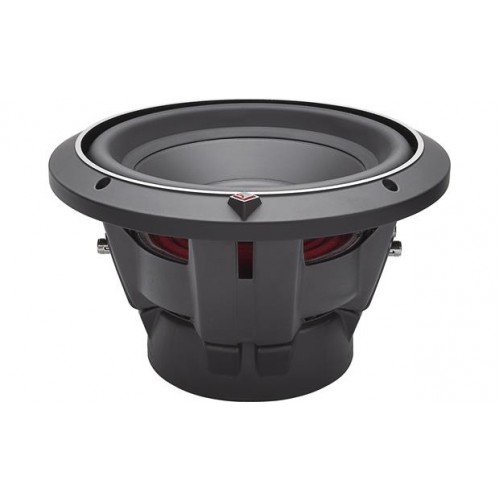

Rockford Fosgate Punch P2D4-10 10″ Subwoofer
Advertised price subject to our fitment (fitment cost not included).
The Rockford Fosgate P2D4-10 10” subwoofer continues “The PUNCH” tradition. The P2D4-10 features a Dual 4-Ohm voice coil, 300 Watts RMS power handling and can accommodate a grille insert using the included cast aluminum trim ring.
Product successfully added to the Quote List
| Information | |
| Specifications |
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max Magnet Weight (oz)
66.4 oz. (1.88 kg.)
Speaker Connector
Dual 10 AWG compression
Shipping Weight
13.6 Lbs. (6.16 kg)
Qts
0.57
Cutout Diameter
9.13 in. (232 mm)
Size
10"
Nominal Impedance
Dual 4-Ohm
Voice Coil Diameter
2.25" (57.15 mm)
Mounting Depth
5.92 in. (150.4 mm)
SPL (dB @ 1w/1m)
84
Fs (Hz)
30.8
Qes
0.62
Qms
7.00
Vas (Liters)
35.4
Xmax (mm)
11
Woofer Displacement
0.060 cu. ft. (1.7 Liters)
Le (mH)
5.3
CEA-2031 Compliant
 Re (Ohms)
6.40
Sd (cm2)
360
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
|
