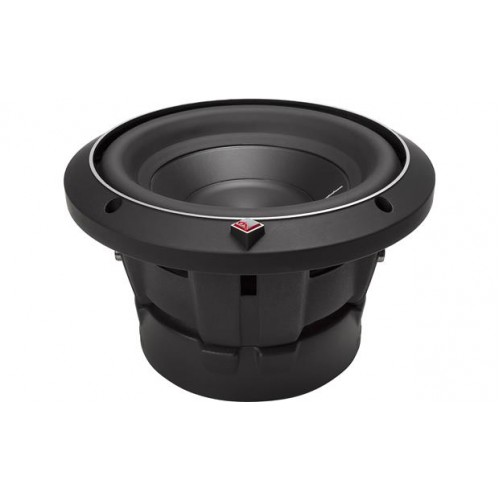

Rockford Fosgate Punch P2D2-8 8″ Subwoofer
Advertised price subject to our fitment (fitment cost not included).
The Rockford Fosgate P2D2-8 8″ subwoofer continues the PUNCH tradition. The P2D2-8 features a Dual 2-Ohm voice coil, 250 Watts RMS power handling and can accommodate a grille insert using the included cast aluminum trim ring.
Product successfully added to the Quote List
| Information | |
| Specifications |
Mounting Depth
4.76 in. (120.8 mm)
Qts
0.46
Qms
5.40
Xmax (mm)
7.8
Woofer Displacement
0.042 cu. ft. (1.2 Liters)
Size
8"
Nominal Impedance
Dual 2-Ohm
Voice Coil Diameter
2.25" (57.7 mm)
Speaker Connector
Dual 10 AWG compression
Shipping Weight
10.763 Lbs. (4.88 kg.)
SPL (dB @ 1w/1m)
83
Fs (Hz)
39.6
Qes
0.51
Vas (Liters)
9.9
Cutout Diameter
7.13 in. (181 mm)
Re (Ohms)
3.40
Le (mH)
2.9
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max Magnet Weight (oz)
49 oz. (1.38 kg.)
CEA-2031 Compliant
 Sd (cm2)
221
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.23 cu. ft. (6.5 Liters)
Vented Box Volume (Vb)
0.65 cu. ft. (18.4 Liters)
|
