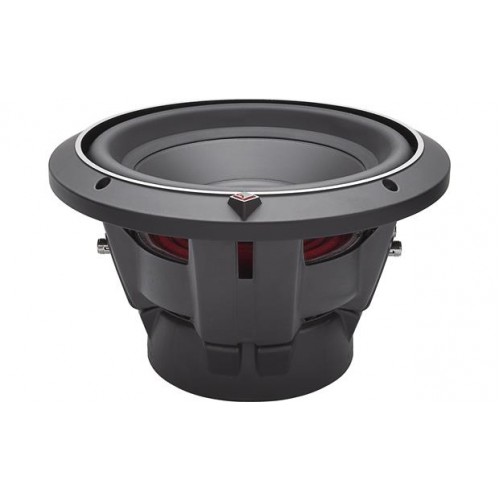

Rockford Fosgate Punch P2D2-10 10″ Subwoofer
Advertised price subject to our fitment (fitment cost not included).
The Rockford Fosgate P2D2-10 10″ subwoofer for cars and trucks continues “The PUNCH” tradition. The P2D2-10 sub features a Dual 2-Ohm voice coil (DVC), 300 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminium trim ring.
Product successfully added to the Quote List
| Information | |
| Specifications |
Size
10"
Nominal Impedance
Dual 2-Ohm
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max Voice Coil Diameter
2.25" (57.15 mm)
Mounting Depth
5.92 in. (150.4 mm)
SPL (dB @ 1w/1m)
84
Qes
0.54
Qms
7.00
Vas (Liters)
35.4
Xmax (mm)
11
Woofer Displacement
0.060 cu. ft. (1.7 Liters)
Le (mH)
3.32
Magnet Weight (oz)
66.4 oz. (1.88 kg.)
Speaker Connector
Dual 10 AWG compression
Shipping Weight
13.6 Lbs. (6.16 kg)
Fs (Hz)
29
Qts
0.50
Cutout Diameter
9.13 in. (232 mm)
Re (Ohms)
3.20
CEA-2031 Compliant
 Sd (cm2)
360
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
|
