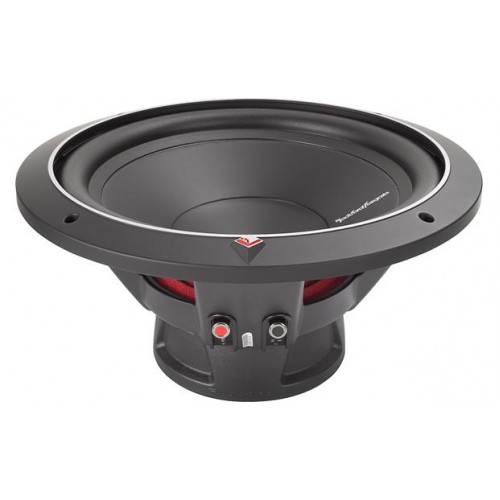

Rockford Fosgate Punch P1S4-10 10″ Subwoofer
The Rockford Fosgate P1S4-10 10″ is the first in a family of famous “Punch” subwoofers. The P1S4-10 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Advertised price subject to our fitment (fitment cost not included).
Product successfully added to the Quote List
| Information | |
| Specifications |
Magnet Weight (oz)
45 oz. (1.28 kg.)
Voice Coil Diameter
2.0" (51.6 mm)
Speaker Connector
Dual 10 AWG compression
Mounting Depth
5.33 in. (135.4 mm)
SPL (dB @ 1w/1m)
85
Fs (Hz)
30
Qts
0.52
Qes
0.61
Qms
3.00
Vas (Liters)
40
Cutout Diameter
9.14 in. (232 mm)
Woofer Displacement
0.056 cu. ft. (1.6 Liters)
Re (Ohms)
3.6
Size
10"
Nominal Impedance
4-Ohm
Shipping Weight
10.9 Lbs. (4.94 kg)
Xmax (mm)
9.0
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max CEA-2031 Compliant
 Le (mH)
2.81
Sd (cm2)
370
Subwoofer Type
Standard
Voice Coil Type
Single Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
|
