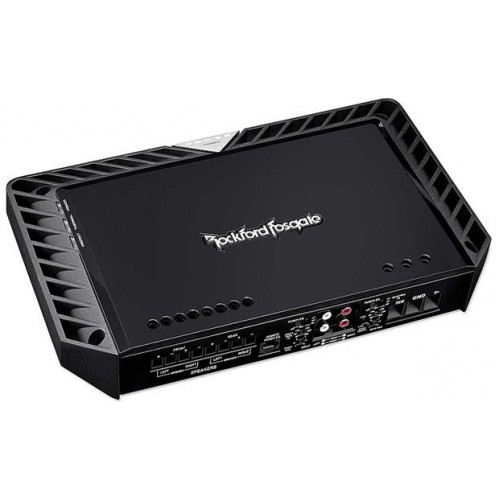

Rockford Fosgate Power T400-4 4 Channel Amplifier
Available in store only and subject to our fitment (fitment cost not included).
The Power T400-4 is a 4-channel amplifier capable of producing 100 Watts into each of its four channels at 2-Ohms. The T400-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
Product successfully added to the Quote List
| Information | |
| Specifications |
Recommended Fuse
(not included) 60 A
Damping Factor
>200
Signal-to-Noise (CEA)
>90 dB
Channel Separation
>60 dB
Common Mode Rejection
>65 dB
Shipping Weight
11.90 Lbs. (5.39 Kg.)
Average Current Draw (13.8V Music)
30 A
CEA-2006 Compliant
 CEA-2006 Power Rating60W x 4 @ 4Ω ≤1.0% THD+N Max. Current Draw (13.8V Sinewave)
60 A
Dynamic Power
(PVC/PowerCube®) 84 Watts x 4 @ 4-Ohm 0° Res
139 Watts x 4 @ 2-Ohm 0° Res 272 Watts x 2 @ 4-Ohm Bridged Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0% Efficiency (average)
69% @ 4-Ohm
68% @ 2-Ohm Operating Voltage 9 - 16 VDC
Suggested Alternator
75 A
Input Sensitivity
150 mV to 4 V
Number of Channels
4
Rated Power
(RMS Continuous Power) 60 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged 2-Ohm x 2 Bridged Stable Total Power
(Sum of Rated Power) 400 Watts RMS
Bridgeable
Yes
Crossover Controls
Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth
Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth Tone Controls
Front Channels - Punch EQ
Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels - Punch EQ Signal Input
Front Low level: 1 RCA pair
Rear Low level: 1 RCA pair Input Switch: 2CH / 4CH Signal Output
n/a
Power Input Connector
Block
Power Wire Gauge
8 AWG to 4 AWG
Speaker Output Connector
Screw terminal barrier strip
Speaker Wire Gauge
8 AWG to 18 AWG
Heat Sink Type
Cast aluminum
Cooling
Convection
Remote Controls
Optional Remote Punch EQ
(overrides rear channel built-in Punch EQ) Visual Indicators
Power
Thermal Protect Circuit Topology Class
Class A/B
Frequency Response
20Hz to 20kHz +/- 1dB
Dimensions (H x W x D)
2.14 x 8.14 x 13.66 (in)
5.42 x 20.68 x 34.69 (cm) |
