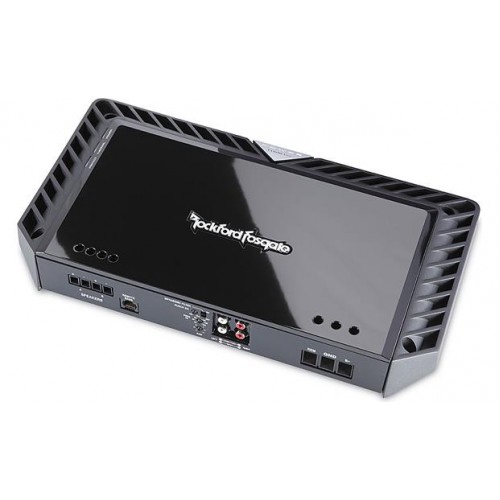

Rockford Fosgate Power T1500-1bdCP 1500W Mono Amplifier
Available in store only and subject to our fitment (fitment cost not included).
The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.
Product successfully added to the Quote List
| Information | |
| Specifications |
Recommended Fuse
(not included) 200 A
Channel Separation
—
Signal-to-Noise (CEA)
>80 dB
Damping Factor
>200
Common Mode Rejection
>70 dB
CEA-2006 Compliant
 CEA-2006 Power Rating1000W x 1 @ 4Ω ≤1.0% THD+N Average Current Draw (13.8V Music)
100 A
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0% 1-Ohm: <1.0% Efficiency (average)
86.2% @ 4-Ohm
74.6% @ 2-Ohm 63.0% @ 1-Ohm Shipping Weight
14.35 Lbs. (6.50 Kg.)
Input Sensitivity
150 mV to 5 V
Suggested Alternator
100 A
Max. Current Draw (13.8V Sinewave)
200 A
Operating Voltage
9 - 16 VDC
Dynamic Power
(PVC/PowerCube®) 1045 Watts x 1 @ 4-Ohms
1549 Watts x 1 @ 2-Ohms 1715 Watts x 1 @ 1-Ohm Number of Channels
1
Rated Power
(RMS Continuous Power) 1000 Watts x 1 @ 4-Ohm
1500 Watts x 1 @ 2-Ohm 1500 Watts x 1 @ 1-Ohm Total Power
(Sum of Rated Power) 1500 Watts RMS
Bridgeable
No
Crossover Controls
Low-Pass (LP): 35-250Hz 24dB/octave Butterworth
Tone Controls
Bass: 0dB to +18dB @ 45Hz
Infrasonic Filter: -3dB @ 28Hz 12dB/Octave Signal Input
Low level: 1 RCA pair
Signal Output
Low Level: 1 RCA pair
Power Input Connector
Block
Power Wire Gauge
4 AWG
Speaker Output Connector
Screw terminal barrier strip
Speaker Wire Gauge
8 AWG to 18 AWG
Heat Sink Type
Cast aluminum
Cooling
Convection
Remote Controls
Optional Remote Punch Bass EQ
(overrides built-in Punch Bass EQ) Visual Indicators
Power
Thermal Protect Circuit Topology Class
Class BD
Frequency Response
20Hz to 250Hz +/- 0.5dB
Dimensions (H x W x D)
2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm) |
