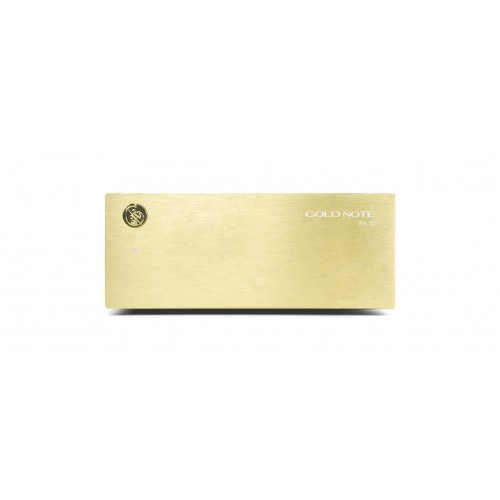

Gold Note PA-10 Power Amplifier

OUTSTANDING PERFORMANCE. The PA-10 is a high-power amplifier characterized by its compact size and versatility, suitable for any modern High-End audio system, and capable to play either in Stereo or Mono (bridged) mode. The aesthetic of the chassis is derived from the Series 10 products, integrating the PA-10 into a coherent concept inspired by the Italian style and Gold Note modular design.The chassis is made from heavy aluminum panels and accurately selected audio components. The idea behind the PA-10 was to design a power amplifier compact in size but both capable of astounding power and of driving any kind of loudspeakers. The proprietary technology developed for the PA-10 allows the amplifier to act like a class A amplifier doubling its power while lowering the speaker impedance. It features a 75Watt @ 8Ω, 150Watt @ 4Ω and 300Watt @ 2Ω in stereo mode, and an amazing 300Watt @ 8Ω, 600Watt @ 4Ω in mono mode. SMART FUNCTIONS. The PA-10 distinguishes itself with its great versatility: thanks to the adjustable Damping Factor and to The Bridge-Tied-Load technology (Mono mode) it perfectly pairs to any kind of speakers, from the most difficult to high-sensitivity and mini-monitor. The XLR stereo output enables the PA-10 to be configured in series for high-quality multi-room solutions, made easy by the automatic On/ Stand-by mode based on the audio signal received. The PA-10 comes with both RCA and XLR inputs. It optionally offers the possibility to be simultaneously connected to two different sources.It’s easy to use thanks to the GN Link technology which allows to use two or more amplifiers in master-slave mode with other units presenting the same feature (turns ON/OFF all the units connected via GN Link). Gold, Black or Silver anodised aluminium with a traditional brushed finish.

DIMENSIONS 200mm W | 80mm H | 260mm D                290mm W | 180mm H | 390mm D – boxed

WEIGHT Kg. 4 – net   Kg. 5 – boxed

POWER OUTPUT 75W@ 8Ω and 150W @ 4Ω per channel, 600W @ 4Ω per channel in mono (BTL)

FREQUENCY RESPONSE 10Hz-30kHz at +/-1dB         TOTAL HARMONIC DISTORTION (THD) 0,05%

DAMPING FACTOR high (250) or low (25)                        AUDIO INPUTS 1x RCA unbalanced   1x XLR balanced

INPUT SENSITIVITY RCA 1,4Vrms  XLR 1,4Vrms       INPUT IMPEDANCE 13kΩ RCA/XLR

AUDIO OUTPUTS Speaker terminals: Gold plated binding posts

POWER CONSUMPTION 600W nominal power

<1W standby

<10W no signal

DYNAMIC POWER 1400W                                                            POWER SUPPLY 100-240V / 50-60Hz

FUSE 6,3A T
